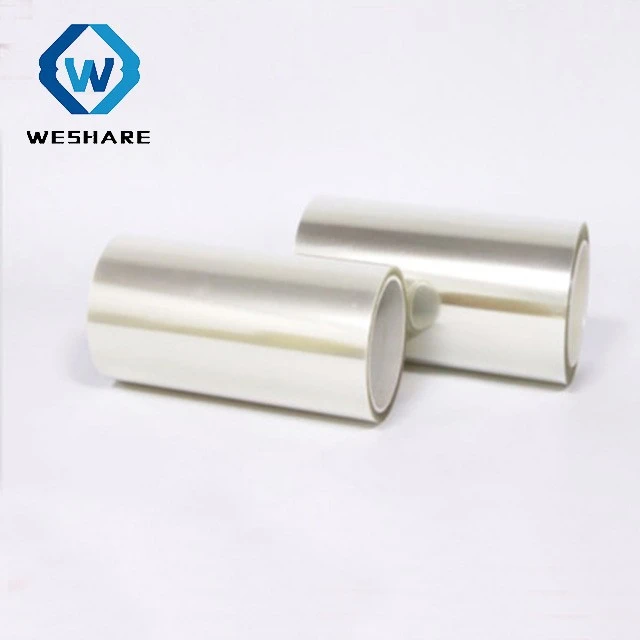

Anti-static Pet Release Film

Description of anti-static pet release film

Anti-static PET Release Film is a functional release film with anti-static coating and silicone release agent coated on the surface of PET (polyester) film. It has excellent release performance and the ability to inhibit static electricity accumulation. It is widely used in high-end industries such as electronics, optics, semiconductors, and die-cutting that are sensitive to static electricity. It can effectively prevent problems such as static electricity damage, dust adsorption, and material breakdown.



The product is a release film which is coated on the PET base material. It has the characteristics of stability, high temperature resistance, easy shear type and no silicon migration. It can be widely used in backlight die-cutting, digital product die-cutting, hand die-cutting, adhesive products and other industries.

Product performance:

Model	Color	Thickness of the base material	Thickness of the practical	Release force g/25mm
W25	Transparent, Blue, red, grey, yellow	25	25	1-3,3-6,6-12,12-20,20-50, above 50
W38		38	38
W50		50	50
W75		75	75
W100		100	100

Features of anti-static PET release film

- Production in the dust-free workshop, the film surface cleanliness is high.

- The surface is smooth and clean, no wrinkle, no scratch, no tear, particle, bubble, pinhole and other defects.

- The material hardness is moderate, the flexibility is good, easy die-cutting blanking type

- The coating is uniform and the separation force stability is good



Advantage of Anti-static PET Release Film



1.Silicone Coated PET Film with a flat vibrant surface,high cleanliness ,no cockie,grain,air bubble, pinhole,scratch and colour lines.



2. Anti-static release film has excellent physical and mechanical properties , little thickness tolerance ,even transparency ,low hot-shrinkage rate,good tensile strength.



3. Pet Releasing Film floor launch depend coating uniform, little launch pressure , run-out tolerance.



4. PET release liner Film can be cut into roll or disk , has little dependence on storage temperature, storage humidity , storage time.



Specification:

Item	Test Result
Thickness:um	12-188
Tensile Strength (MD/TD):Mpa	210/210
Elongation (MD/TD):%	150/140
Heat Shrinkage (MD/TD)150°C, 30 min:%	1.5/0.3
Haze:%	2-15
Release Force:g/inch	1-600
Residual Adhesion Rate:%	>85





Application:

Packing & delivery:

1. Roll Packing

2. Box Packing

3. Pallet Packing
