DDP Insulating Paper
Products Description We provide a full range of flexible insulation materials, including composite materials of paper and film, such as DMD, NMN, NHN, AMA, AHA, DDP Insulation paper, etc. We provide customized services: Including Insulating paper thickness, weight of each roll of paper,...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description

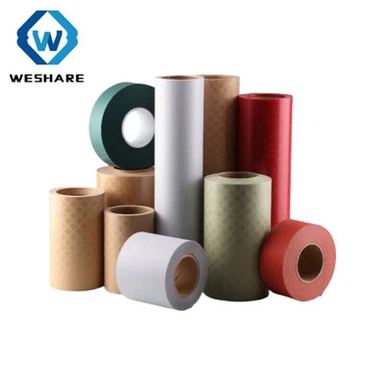

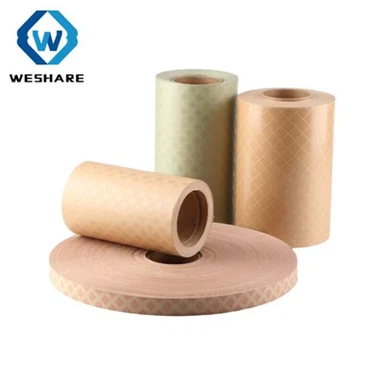

DDP Insulating paper is a special modified epoxy resin coated in a diamond shape on high-performance insulating paper. It is widely used in interlayer insulation and turn insulation of oil-immersed power transformers.
We provide a full range of flexible insulation materials, including composite materials of paper and film, such as DMD, NMN, NHN, AMA, AHA, DDP Insulation paper, etc.
We provide customized services:
Including Insulating paper thickness, weight of each roll of paper, temperature resistance level, packaging logo, all can be customized.
Minimum order quantity: 100KG
Sample: Free of charge
Quality inspection sheet: Available for each batch of products
| NO. | Item | Unit | Index | ||||
| 1 | Thickness | mm | 0.08 | 0.13 | 0.17 | 0.25 | |
| 2 | Thickness | Longitudinal | MPa | ≥75 | |||
| Horizontal | ≥37 | ||||||
| 3 | Tear strength | 9 | ≥50 | ≥100 | ≥150 | ≥300 | |
| 4 | Breakdown voltage | V | ≥800 | ≥1100 | ≥1400 | ≥1600 | |
| 5 | Bond strength | KPa | ≥450 | ||||
| 6 | Moisture | % | 4~8 | ||||
| 7 | Curing temperature and time | 一 | 90±5℃/3h+130±5℃/6h | ||||
| 8 | Storage life | Month | 6 | ||||
Detail
Advantages of DDP insulation paper
1. It has good insulation. When in use, the coating begins to melt at a certain temperature during the drying process of the coil, producing an adhesion effect to protect the coil insulation
2. It has aging resistance and a longer service life than ordinary cable paper, between 5-10 years
Note:
Product classification:
1. According to thickness classification, we provide 0.08mm-0.13mm thickness
2. According to the color of glue dots: different color pastes, dark and light colors
3. According to the size of the diamond grid: regular 8*8, 9*9 size
All the above types can be customized
Typical applications of DDP: DDP is wound with copper foil to protect the coil
our certificate
FAQ
1/Can the thickness of your insulation paper be customized?
A: Yes, we can. The regular sizes are 0.08mm, 0.13mm...0.50mm. We have stock. Other thicknesses can be customized.
2/Can I get free samples for testing?
A: Of course, we provide free samples, but you need to bear the logistics costs.
3/I want composite insulation materials of paper and film. Do you provide them?
A: Of course, please contact our sales
