New Product: PET, PP, PE Mesh Release Film
Jun 24, 2026
Product Advantages of PET, PP, PE Mesh Release Film
Clear mesh texture
Stable performance
Ultra-light weight
Multiple color options
Coating Method
UV Coating
Available Colors
Red, Blue, Black, White, Green, Transparent, High-transparency, Yellow
Product Introduction
Mesh release film is a thin polymer material (PET, PP, PE, etc.) with mesh textures on its surface. Its core function is to allow adhered materials to be easily peeled off and release trapped air without residue or surface damage in target applications.
Widely used in adhesive tape manufacturing, isolation protection, die-cutting processing, medical production, thermal conductive silicone sheets, facial mask substrates, carbon fiber pre-impregnation and other fields. It delivers a non-stick surface suitable for all applications requiring easy separation of adhesives. Standard thickness ranges from 30–300 μm. Common mesh patterns include diamond, rectangular, square, corrugated, striped and dot textures.
Data Sheet:
| Product name | High Density Polyethylene Foil |
| Raw material | High Density Polyethylene Resin |
| Product color | Slightly Transparent, Colorless |
| Product length | 1000m |
| Product width | 1090mm |
| Product Thickness | 80um |
| Appearance | Smooth, uniform thickness, no defect, no bubble, nowrinkles, no badplasticizations,no bad smell, no impurties, uniform color |
| Project | Unit | Linit deviation | Test result |
| Length | m | +/-5 | 1002 |
| Width | mm | +/-10 | 1095 |
| Thickness after embossing | um | 150+/120 | 150 |
| Thickness before embossing | um | 80+/10 | 80 |
| Tensile strength | Mp | 20-30 | 30 |
| Elongation at break | % | >300 | 500 |
| Unit area quality | g/m2 | 75+/-5 | 75 |
| Density | 0.94g/mm3 | 0.94g/mm3 | |
| Max. use temp. | degree | 100 | 100 |
| min. use temp. | degree | -20 | -20 |
| Toluene resistance | OK | OK |

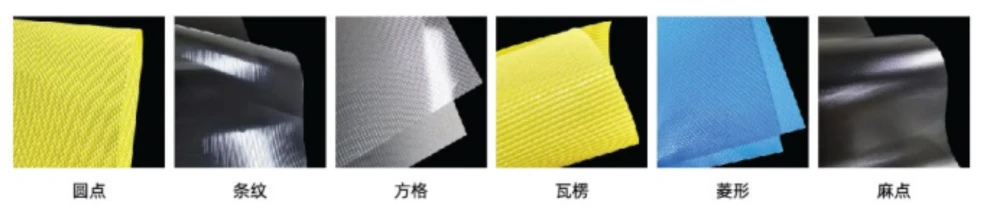

Mesh Pattern Types
Dot, Stripe, Square Grid, Corrugated, Diamond, Dotted Matte
