Heat Resistant Insulation Mica Sheet
We presently have the capability to make extraordinary complex custom-made mica components along with mica washers and spacers, mica flanges and discs, mica gaskets, mica tubes for electrical insulation and different machined mica components or components. All such more than a few components are applied in industries of family appliance, metallurgy, petrochemical, locomotive, automobile, rail transit, navy and shipbuilding.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description:
Heat Resistant Insulation Mica Sheet Thickness: from 0.1mm to100mm
Length and Width: 1000×600mm 1000×1200mm 1000×2400mm
Note: The product less than 2.0mm thickness can be formed by stamping. The products larger than 2.0mm shall be processed by turning, milling, drilling and other processes.
What this sheet is
Heat resistant mica sheet is a rigid laminate built from mica paper and a silicone resin binder, hot-pressed into a dense, dimensionally stable board. Because the insulation comes from natural mica rather than an organic polymer, the sheet keeps its dielectric strength and mechanical shape at temperatures where epoxy glass laminate and most engineering plastics have already failed.

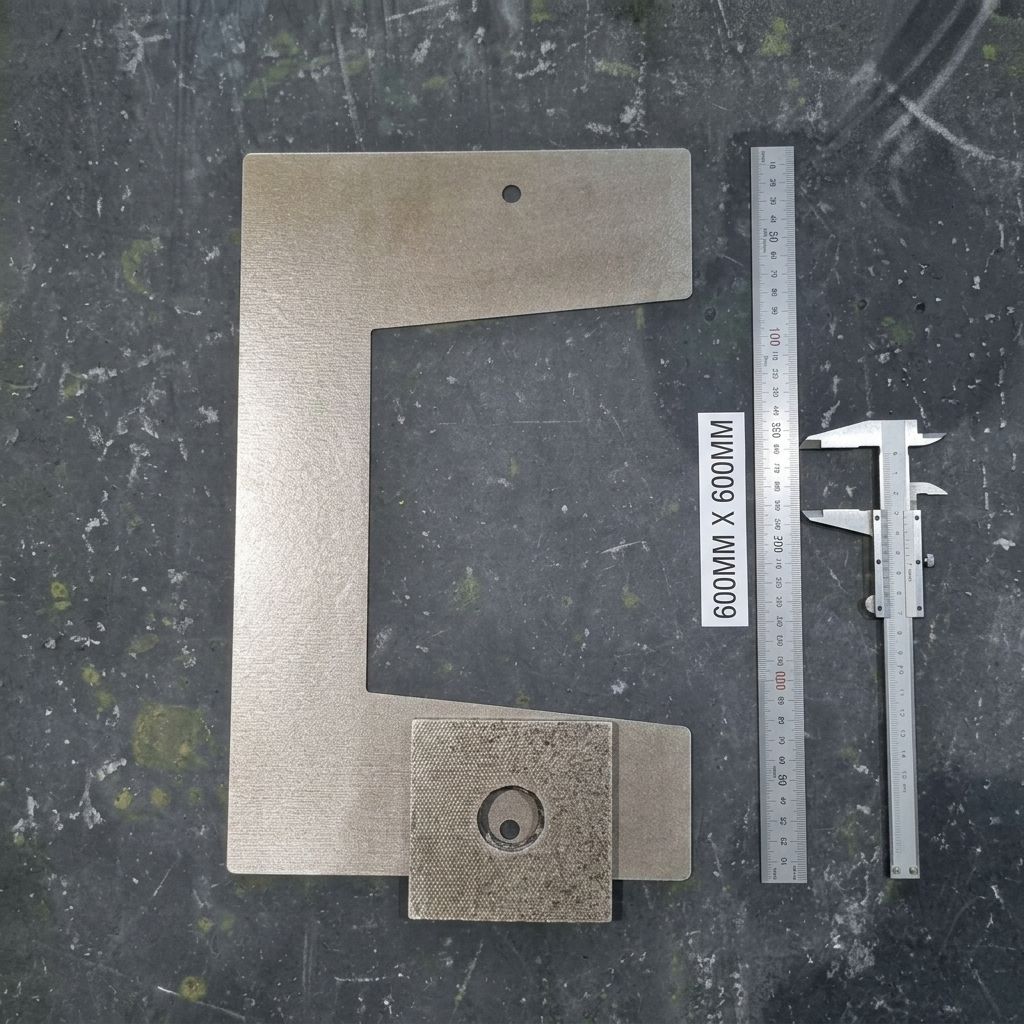

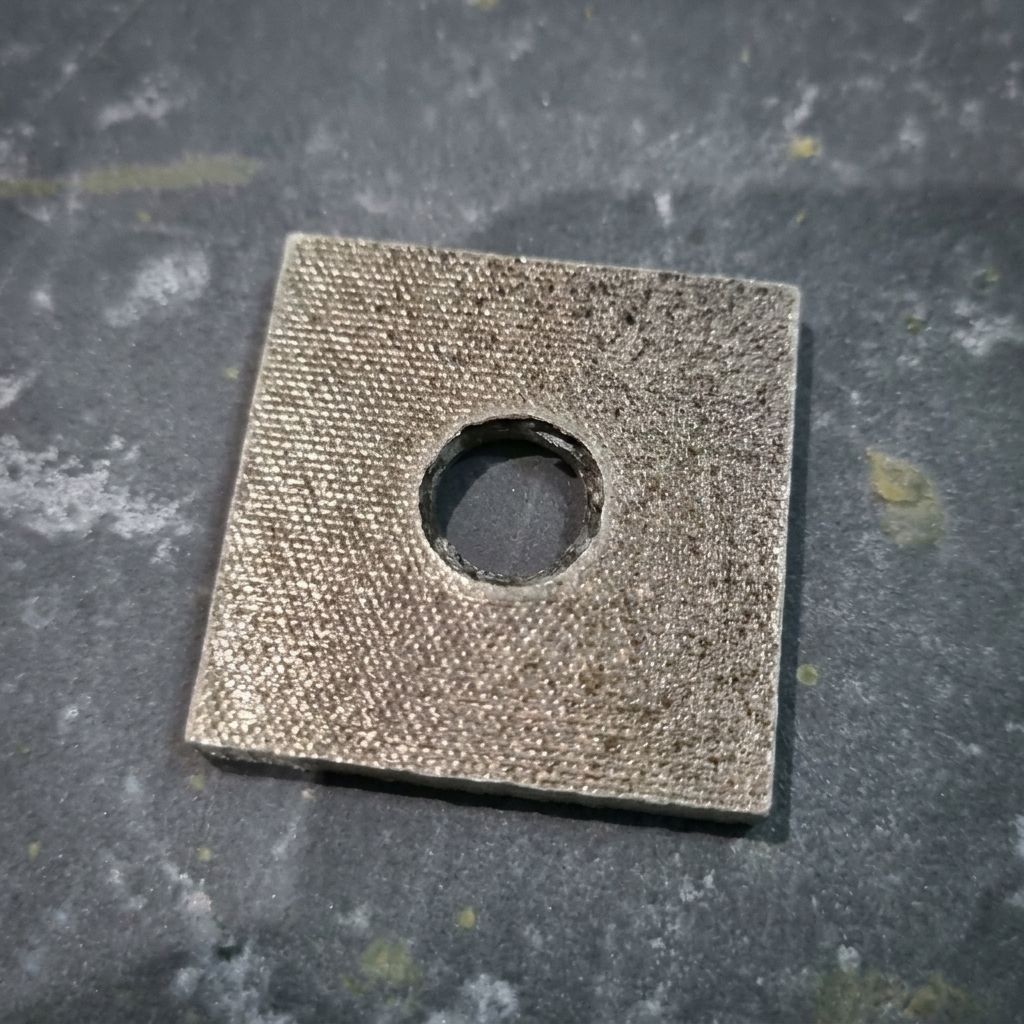

We supply it in two mica types, muscovite and phlogopite, in thicknesses from 0.1 mm to 100 mm, and in sheet sizes up to 1000 × 2400 mm. Both grades are used as slot insulation, barrier and spacer insulation in transformers, as thermal and electrical barriers in household appliances, and as heat shields in industrial heaters.
Specifications
| Item | Value |
|---|---|
| Material | Mica paper + silicone resin, hot pressed |
| Mica type | Muscovite / phlogopite |
| Thickness | 0.1 mm - 100 mm |
| Standard sheet size | 1000 × 600 mm / 1000 × 1200 mm / 1000 × 2400 mm |
| Cut-to-size | Available to drawing |
| Continuous service temperature | See grade table above |
| Color | White (muscovite) / amber (phlogopite) |
Thickness, sheet size and processing limits
Thickness drives the manufacturing route, so it should be specified before the drawing is issued:
Below 2.0 mm - the sheet can be produced by stamping, which is the fast and economical route for high volumes of small parts.
2.0 mm and above - the sheet is processed by turning, milling and drilling. Please send a drawing with tolerances.
We support CNC machining, die-cutting and drilling to drawing. Tolerances and minimum radii are confirmed at quotation.
Applications
Transformers and reactors - slot insulation, barrier and spacer insulation, cylinder and yoke insulation
Household appliances - toaster, hair dryer, iron, kettle and grill heating element support and thermal barriers
Industrial heaters - heater bands, cartridge and band heater insulation, extrusion machine heaters
Switchgear - arc and thermal barriers in circuit breakers and contactors
New energy - thermal barrier and electrical insulation in battery packs and charging equipment
Customization: coating, backing and machining
Beyond plain rigid sheet we can supply mica sheet with a self-adhesive backing, with glass cloth reinforcement, or as fully machined components to drawing. Tell us the assembly method and we will recommend the format.
Storage
Two years quality guarantee from production date, under proper storage with temperature ≤40℃ and humidity ≥60% with original package.
FAQ
Muscovite or phlogopite - which do I need?
- Muscovite is the lower-cost grade with the higher dielectric strength and is the usual choice for transformer and appliance insulation within its temperature class. Phlogopite costs more but holds its properties at higher temperatures. If your continuous operating temperature is near the top of the muscovite range, specify phlogopite.
What is the maximum continuous temperature?
- It depends on the mica type and the resin system. See the grade table above. We quote the figure from the batch test report rather than a general brochure number.
Can you supply self-adhesive or glass-cloth-backed sheet?
- Yes. Tell us the assembly method and we will recommend the format.
Do you supply machined parts, not just sheets?
- Yes. We machine to drawing, including drilling, milling and die-cutting.
Can we visit your factory or have a third party inspect?
- Yes to both. Third-party pre-shipment inspection is welcome.
